Polarimeter on the electron stretcher
Detector prototype proves itself in the testbeam
What is a polarimeter?
A polarimeter measures the combined spins (polarisation) of particles in a particle bunch, by using the effect that photons from a laser beam can knock single electrons out of a particle bunch. These 'Compton-scattered' electrons are sent through a magnetic chicane where they are deflected. The degree of deflection depends on their energy which, in turn, depends on its own polarisation. Behind the chicane, the electrons are sent through gas-filled tubes with mirrors on the inside. Flying through the tubes, they emit a blue light – Cherenkov radiation – which is directed at the end of the tube by the inside mirror surface. A photo detector measures the amount of light that comes through.
Read more about polarisation

Most collaborations who test their detector prototypes in a test beam want a well-defined stream of single particles into their setup so that they can test their equipment, alignment and software in order to cross-check it against the particle beam. Others want their setup bombarded to see whether it works – for example, the team around DESY's Jenny List, who design and build so-called polarimeters that measure the combined spin of the beams of electrons and positrons as they pass through before and after they have collided. (Read the info box for a more detailed description of a polarimeter or follow the link to learn more about polarisation.)

Their recently assembled first prototype and four different photo detectors have even more recently passed their test at 'ELSA', an electron accelerator (ELSA stands for Elektronen-Stretcher-Anlage or electron stretcher facility) in a basement of Bonn University in Germany which provides exactly the sort of beam that the team needed. The beam contains several hundred electrons, meaning more realistic conditions than in the DESY testbeam in which the team calibrated their prototype. Beams in the ILC will produce some 2000 Compton-scattered electrons per bunch crossing, several hundred per detector channel.

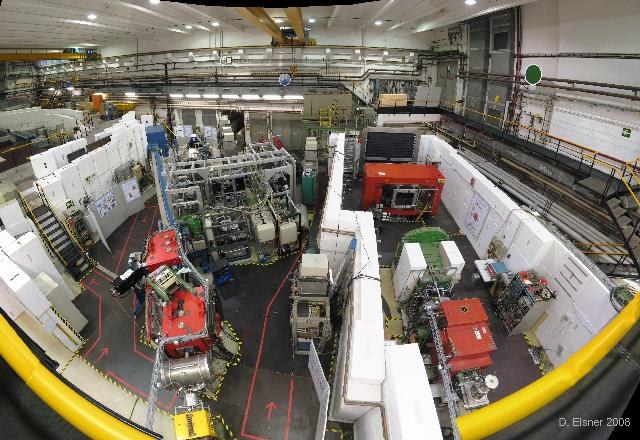

View of the experimental hall at Bonn University's electron stretcher facility. The polarimeter is in the area on the right.

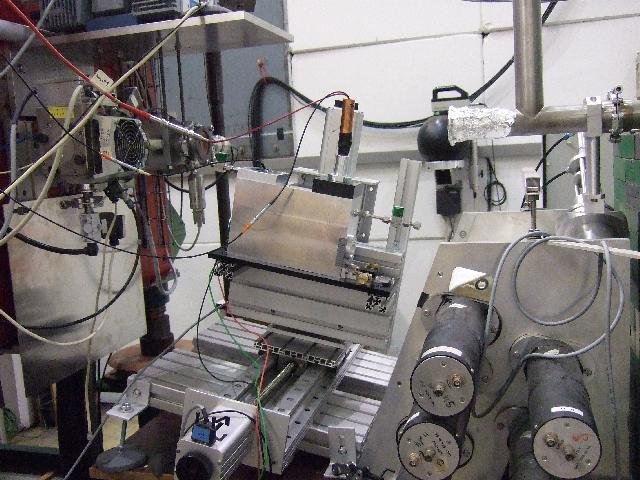

The polarimeter prototype in the beamline.
The team worked at ELSA for two weeks, one week to set everything up and another to run shifts with a total of four researchers. The beam time was sponsored by the Helmholtz Alliance, a network of all German labs and universities involved in the LHC and the ILC. During the shifts, they tested four different photo detectors – the crucial bits that will later measure the light from the scattered electrons – in various configurations. “With the help of these tests we will be able to determine which one performs best,” explains List. “That one might get picked for the final polarimeters.”

The prototype is not exactly what a real polarimeter detector would look like in the ILC tunnel, for example it has fewer channels. “This one is more of a physical rather than a technical prototype,” says List, “we want to check the physical principles and the detectors.” The team is now busy analysing its data.

-- Barbara Warmbein
